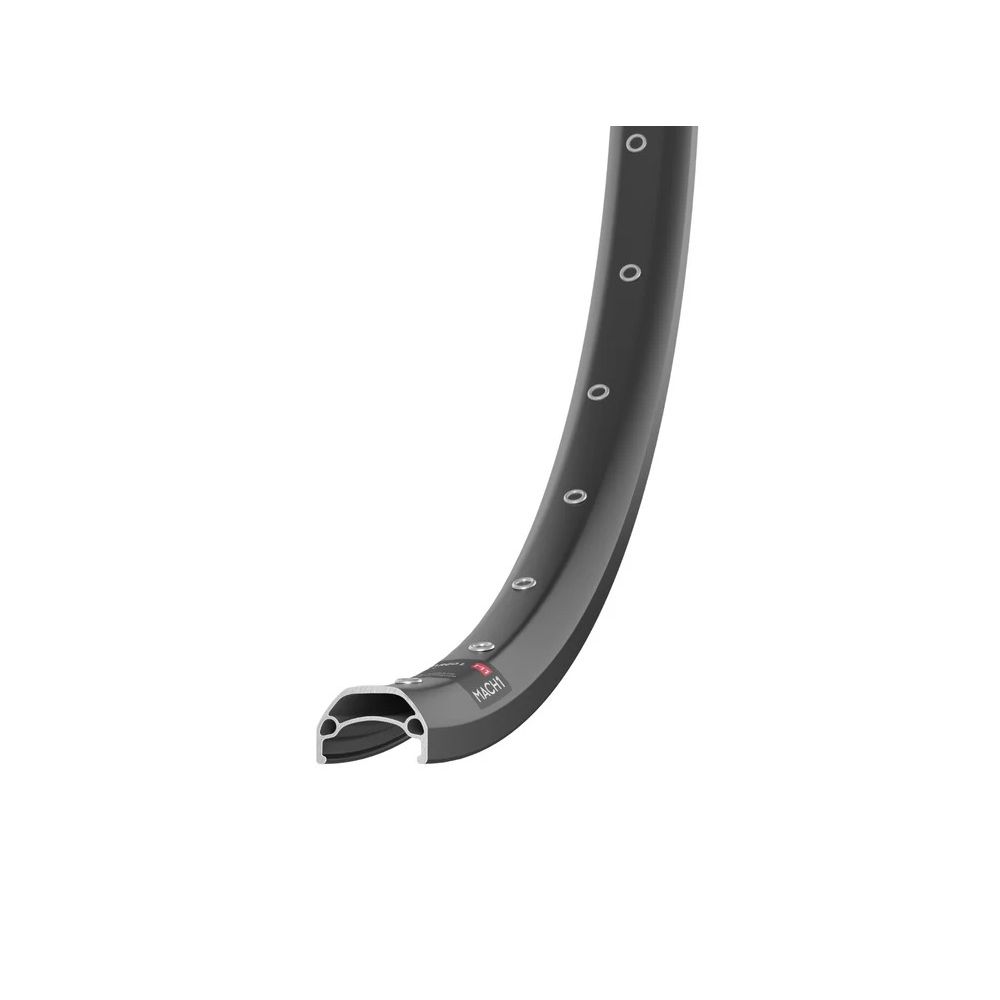

20" Rim (25-406) Mach1 Kargo Disque - 36H

MACH1 KARGO DISC RIM - 20" - 36H

The Kargo rim is a double-walled rim made of 6063-T6 aluminum with eyelets, offering a good balance between weight and rigidity. It is assembled using two pins for added strength. The rim also features staggered hole drilling and the "Wide Angle System," which provides a 2° angle at the rim holes to ensure better alignment of the nipples, spokes, and hub, thereby reducing mechanical stress during use.

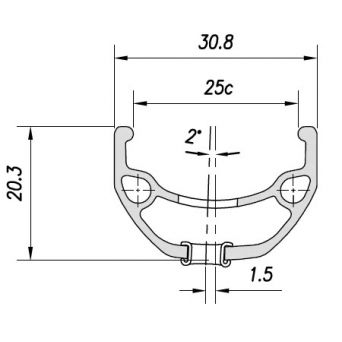

SPECIFICATIONS

• Material: 6063-T6 Aluminum
• Size / ETRTO: 20" / 25-406
• Number of holes: 36
• Walls: Double
• Eyelets: Yes
• Width: 30.8mm
• Height: 20.3mm
• ERD: 381mm
• Tire section: 28-67mm (20x1.40” - 20x1.85”)
• Valve compatibility: Schrader
• Weight: 480g
