Pride Carbon Wave Rim UD Gloss Black 20'' (451) 28H

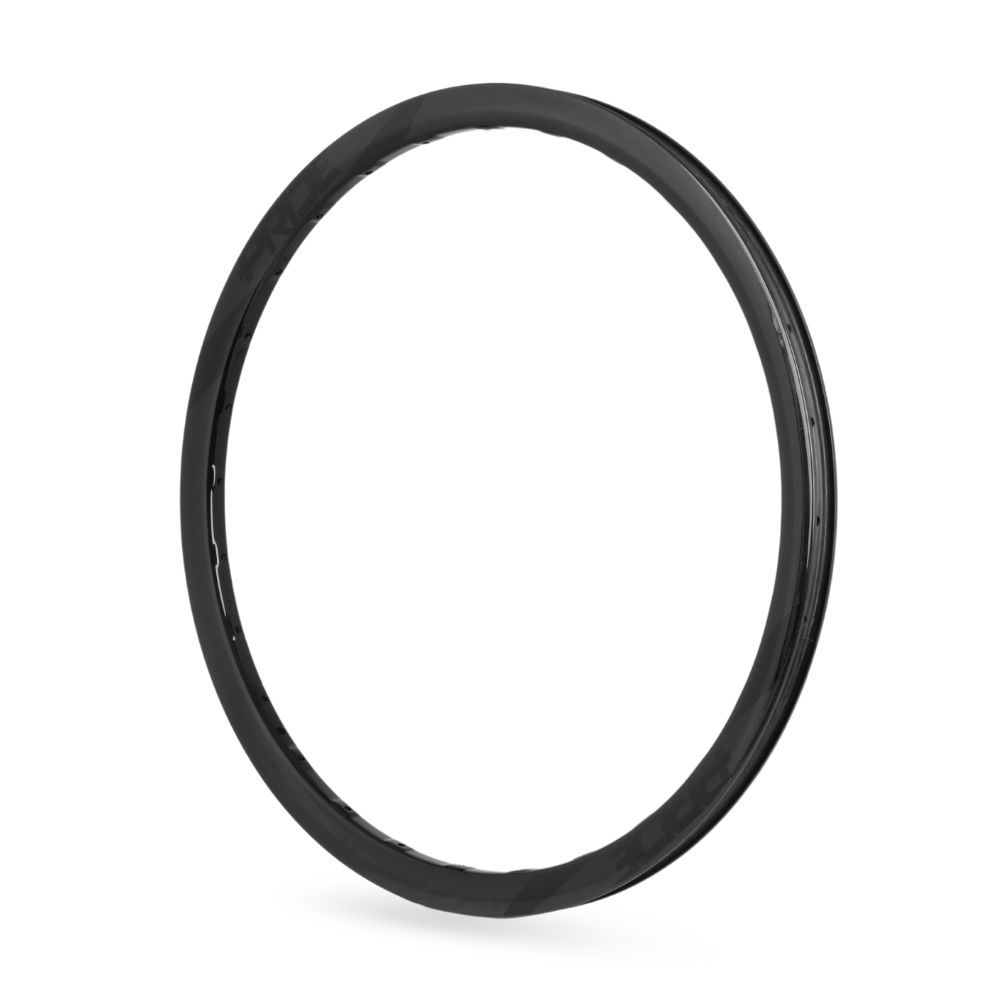

PRIDE CARBON WAVE RIM

Discover the WAVE rim, exclusively designed for BMX Race. This is a brand-new exclusive design by Pride Racing, featuring a square reinforcement at each spoke head. This allows higher spoke tension for superior wheel stiffness, with better spoke head alignment during wheel building.

The Wave rim is made from Toray T700 carbon with a very low-profile design: 25mm height and 23mm width. These dimensions reduce wind resistance and optimize vertical and lateral stiffness. At under 300g, it is one of the lightest rims on the market, a true advantage on the track!

SPECIFICATIONS

• Material: Toray T700 Carbon
• Size / ETRTO: 20" / 16-451
• Number of Holes: 28
• Height: 25mm
• Width: 23mm
• ERD: 419mm
• Valve Type: Presta
• V-Brake Compatibility: No
• Tire Size Compatibility: 20-34mm (20x1-1/8" - 20x1-3/8")
• Weight: 283g

• RECOMMENDATIONS / INSTALLATION

  Please follow the recommendations below to avoid voiding the product warranty:

• - Do not exceed your tire’s maximum pressure
• - Spoke lacing: 3-cross pattern only, no radial lacing
• - Recommended spoke tension: 110 kgf
• - Use front or rear only with disc brakes
