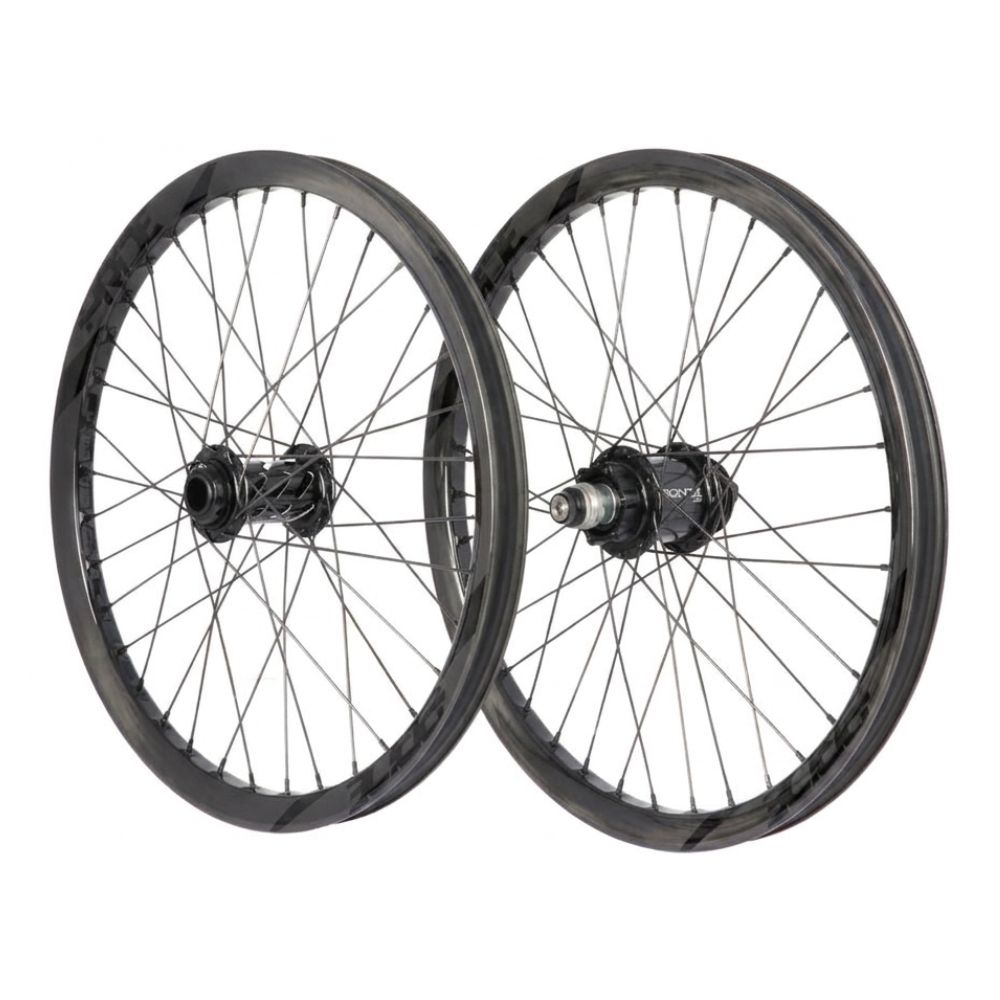

Wheels 20" (406) Onyx Ultra SS Disc 10mm / Pride Wave Black Gloss

20" (406) WHEELS - ONYX ULTRA SS DISC BLACK/PRIDE WAVE

Discover the ultimate BMX Race wheelset, equipped with Pride Wave rims, exclusively designed and developed by Pride Racing and paired with Onyx hubs.

This exclusive design incorporates a square reinforcement at each spoke hole, increasing wheel stiffness. In addition, the spoke holes are angled to ensure a strong and reliable wheel build. The Wave rim is made from Toray T700 carbon and features a very low-profile design with a height of 22 mm and a width of 31 mm. These dimensions reduce wind resistance while optimizing both vertical and lateral stiffness.

Completing this wheelset, the Onyx Ultra SS Disc rear hub with instant engagement delivers a frictionless pedaling experience thanks to its instant engagement system. It is equipped with a large number of sprag clutches, ensuring maximum power transfer. At the front, the Onyx Helix 20 mm hub features a unique design with its CNC-machined hollowed-out hub body, providing maximum weight savings.

Precision, quality, and performance define this premium wheelset, making it the perfect choice for demanding racers.

RIM SPECIFICATIONS

• Size/ETRTO: 20" - 406
• Material: Carbon
• Rim Height: 22mm
• Width: 30mm
• Valve Compatibility: Presta
• Brake Type: Disc
• Tire Compatibility: 20x1.40 - 20x1.85

HUB SPECIFICATIONS

• Material: 6061-T6 Aluminum
• Driver Standard: Ultra SS
• Engagement Type: Direct
• Disc Mount: ISO6
• Front Hub Spacing: 100x20mm (Thru Axle not included)
• Rear Hub Spacing: 110x10mm (Female Axle Hardware)
• Front Hub Bearings: 6805
• Rear Hub Bearings: 6805/6806/6807

WEIGHT

• Wheelset: 1750g (without hardware)
• Front Wheel: 695g
• Rear Wheel: 1055g
