Wheels 20" (406) Onyx Solid/Ultra SS Disc 15mm / Pride Wave Black Matt

WHEELS 20" (406) - ONYX ULTRA SS DISC 15MM / PRIDE WAVE BLACK MATT

Discover the ultimate BMX Race wheelset, equipped with the WAVE rim, designed and developed exclusively by Pride Racing.

This exclusive design incorporates a square reinforcement at each spoke hole, stiffening the wheel. Additionally, the spoke holes are oriented to ensure a robust and reliable assembly. The Wave rim is made of Toray T700 carbon and features a very low profile of 22mm in height and 31mm in width. These dimensions reduce wind resistance and optimize vertical and lateral stiffness.

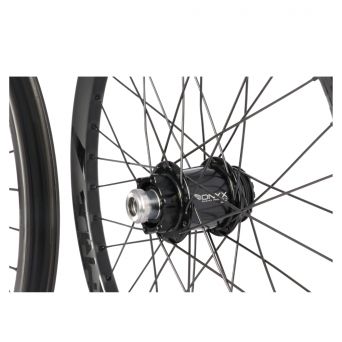

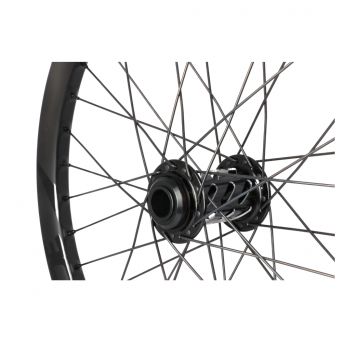

To complete this wheelset, the Onyx Ultra SS Disc rear hub with instant engagement offers a frictionless pedaling experience with its instant engagement feature. Equipped with a large number of locking cams, it ensures maximum power transmission. For the front hub, the Onyx Solid 20mm is employed. It boasts a unique look with its CNC machined and perforated body, maximizing weight savings.

Precision, quality, and performance define this high-end wheelset, perfect for demanding competitors.

SPECIFICATIONS - RIMS

• Model : Pride Wave CFR
• Size/ETRTO : 20" - 406
• Material : Carbon
• Rim Height : 22mm
• Width : 30mm
• Valve Compatibility : Presta
• Brake Type : Disc Tire
• Compatibility : 20x1.40 - 20x1.85

SPECIFICATIONS - HUBS

• Model : Onyx Solid / Ultra SS
• Material : Aluminum 6061-T6
• Driver Standard : Ultra SS
• Engagement Type : Direct
• Disc Mount : ISO6
• Front Axle Spacing : 100x20mm (Axle not included)
• Rear Axle Spacing : 110x15mm (Axle not included)
• Front Wheel Bearings : 6805
• Rear Wheel Bearings : 6805/6806/6807

WEIGHT

• Wheelset : 1802g
• Front Wheel : 692g
• Rear Wheel : 1110g
