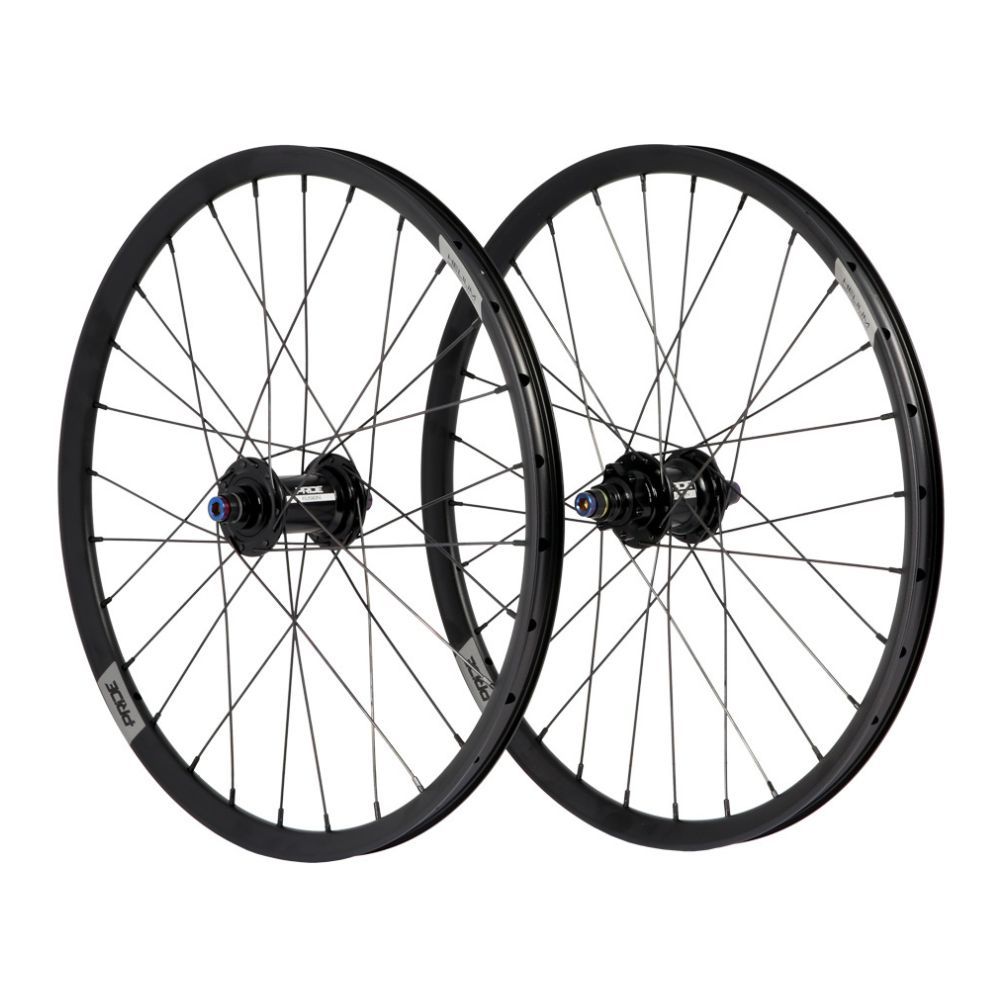

Wheels 20" (451) Pride Helium - Fusion 10/10mm

PRIDE FUSION - HELIUM WHEELS

The Pride Fusion - Helium wheelset combines cutting-edge technology and premium materials to deliver exceptional performance, including lightweight construction, fast responsiveness, and outstanding reliability. A perfect choice for riders seeking top-level performance.

The Pride Helium rim, specifically developed for competition, stands out for its lightweight design, responsiveness, and durability. Weighing under 300g in Pro and Expert sizes, this aluminum rim is among the lightest on the market. Its low-profile design optimizes responsiveness, delivering explosive acceleration and excellent handling—ideal for races where every second counts.

It features the advanced Arcos System® manufacturing process, allowing maximum precision in the rim’s internal design. This process ensures perfect control of the technical properties of 6069-T6 aluminum, a high-quality material combining lightness and strength, capable of handling the most demanding tracks.

The Fusion hubs are packed with technology. Ultra-responsive with 180 points of engagement, they offer minimal drag, exceptional durability, and an ultra-lightweight design at just 290g. Engineered with a 6-pawl system and premium bearings, they guarantee smoothness, precision, and optimal speed.

NOTES

• The rear wheel is supplied with a lock ring as well as spacers to adjust the chainline.
• Rim strips are not included.
• 15mm thru-axle not included (frame-specific).

SPECIFICATIONS - RIMS

• Model: Pride Helium Exp
• Size / ETRTO: 20" / 21-451
• Material: 6069-T6 Aluminum
• Wall: Double
• Spoke Count: 28
• Height: 25mm
• Width: 19mm
• Brake Compatibility: Disc only
• Valve Type: Presta
• Compatible Tire Width: 20x1-1/8" - 20x1-3/8"

SPECIFICATIONS - HUBS

• Model: Pride Fusion
• Material: 6061-T6 Aluminum
• Front Spacing: 10x100mm
• Rear Spacing: 10x110mm
• Hole Count: 28
• Driver Standard: Shimano
• Engagement Type: 180 points / 6 pawls
• Disc Mount: ISO6
• Front Bearing: 6805
• Rear Bearing: 6804

WEIGHT

• Wheelset: 1628g
• Front Wheel: 797g
• Rear Wheel: 831g
