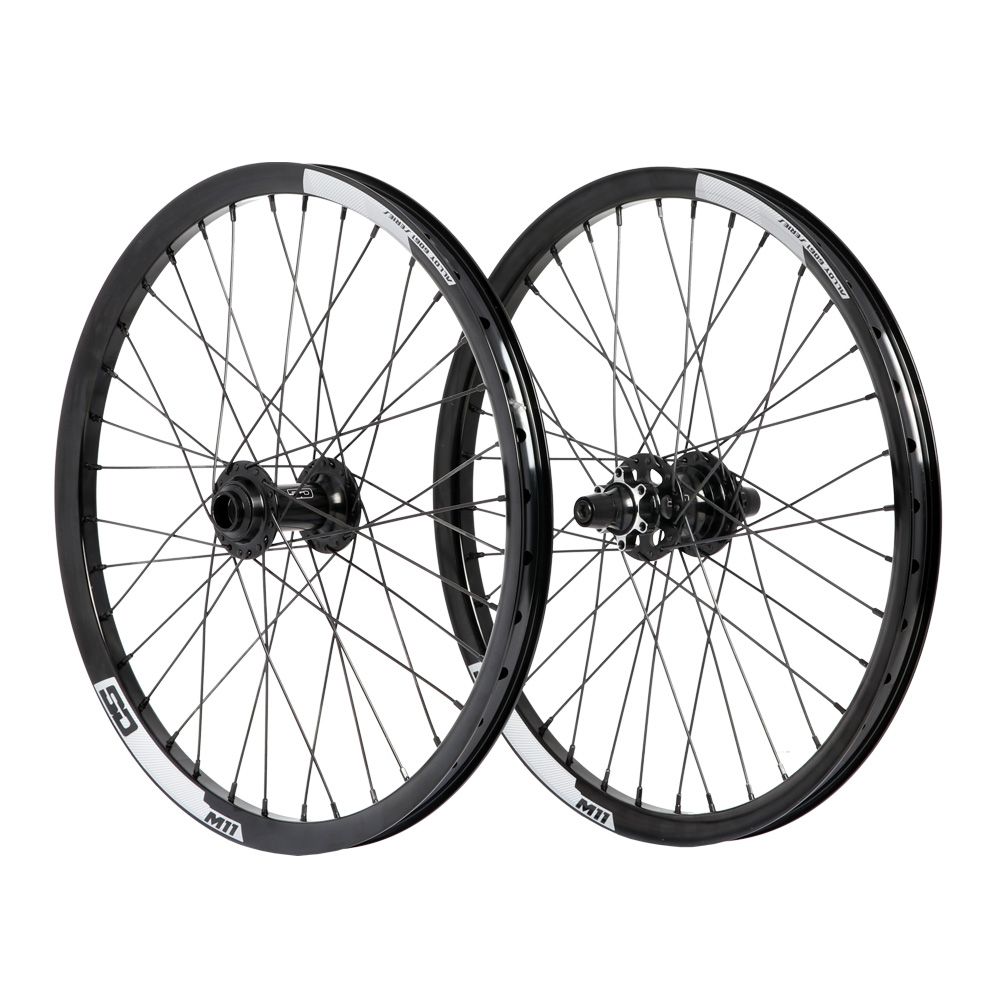

Wheels 20" (406) SD Ace 20/10mm - M11

SD M11 / ACE WHEELS

This SD M11 / Ace wheelset is built with high-performance components for riders seeking maximum stiffness and reliability in both competition and training.

The build is based on ultra-strong and lightweight double-wall SD M11 aluminum rims. At the front, the SD Ace hub is designed for a 20 mm thru axle to maximize stiffness and improve steering precision. The rear SD Ace hub is configured for a 10 mm axle. It features a 6-pawl engagement system with 180 engagement points for near-instant power transfer and explosive acceleration right off the gate.

NOTES

• The rear wheel is supplied with a lock ring and a spacer.
• Rim tape is not included.

SPECIFICATIONS - RIMS

• Model: SD M11
• Size / ETRTO: 20" / 21-406
• Material: 6061-T6 Aluminum
• Wall Type: Double-wall
• Spoke Count: 36
• Height: 20mm
• Width: 27mm
• V-Brake Compatible: No
• Valve Type: Schrader
• Compatible Tire Section: 20x1.40" - 20x1.85"

SPECIFICATIONS - HUBS

• Material: 6061-T6 Aluminum
• Front Spacing: 20x100mm (Thru axle not included)
• Rear Spacing: 10x110mm
• Spoke Holes: 36
• Driver Standard: Shimano
• Engagement System: 180 points / 6 pawls
• Disc Mount: ISO 6-bolt
• Front Bearing: 6805
• Rear Bearing: 6902

WEIGHT

• Wheelset: 1682g
• Front Wheel: 688g
• Rear Wheel: 893g
