Forward Joyride V3 Rear Hub - 10mm

REAR HUB FORWARD JOYRIDE V3 - 10MM

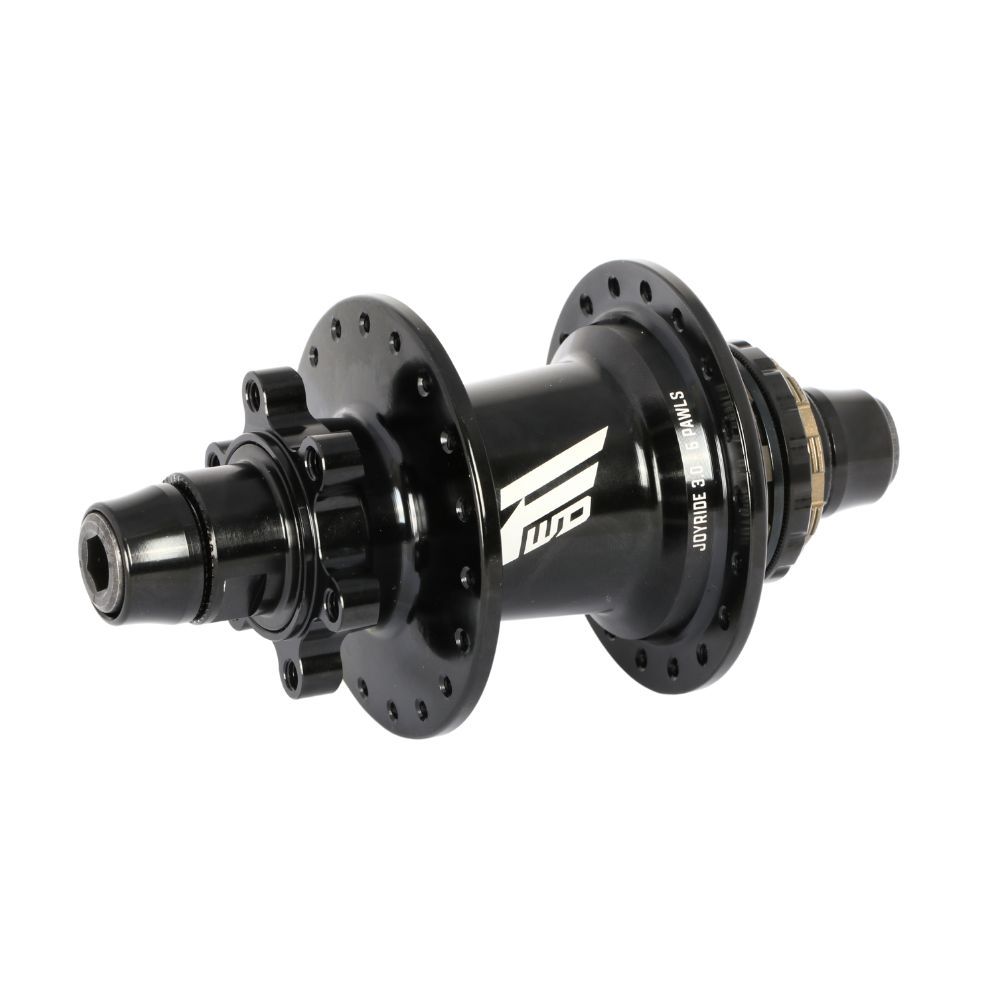

The Forward Joyride V3 hub features a fully CNC-machined aluminum body for a perfect finish. It is equipped with high-quality sealed bearings, offering better protection while ensuring superior rotational smoothness. The thick flanges increase both stiffness and responsiveness, delivering enhanced performance.

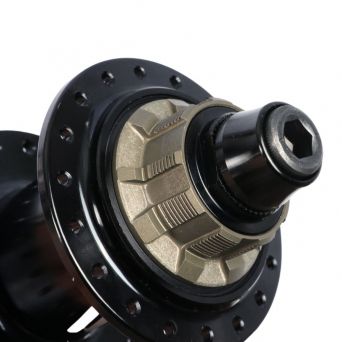

It comes with an aluminum driver with 6 pawls that deliver 108 points of engagement, engaging 3 at a time every 3.33°. The internal axle has a hex key interface for easier disassembly and maintenance.

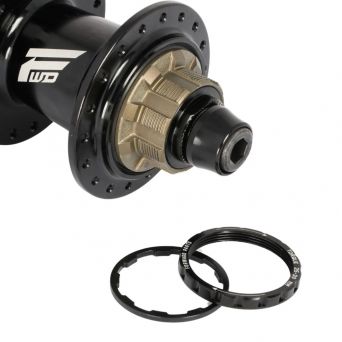

NOTE : The hub is delivered with a lock ring and a 2mm spacer to adjust the chain line.

SPECIFICATIONS

• Material: 6061-T6 Aluminum
• Spacing: 110x10mm
• Bolts: M10 x 1.5
• Hole Count: 28
• Driver Standard: Shimano
• Engagement System: 108 POE / 6 pawls / 3.33° engagement
• Disc Mount: ISO6
• Hub Bearings: 18307 (18x30x7mm)
• Driver Bearings: 18307 (18x30x7mm)
• Weight: 409g (including bolts)
