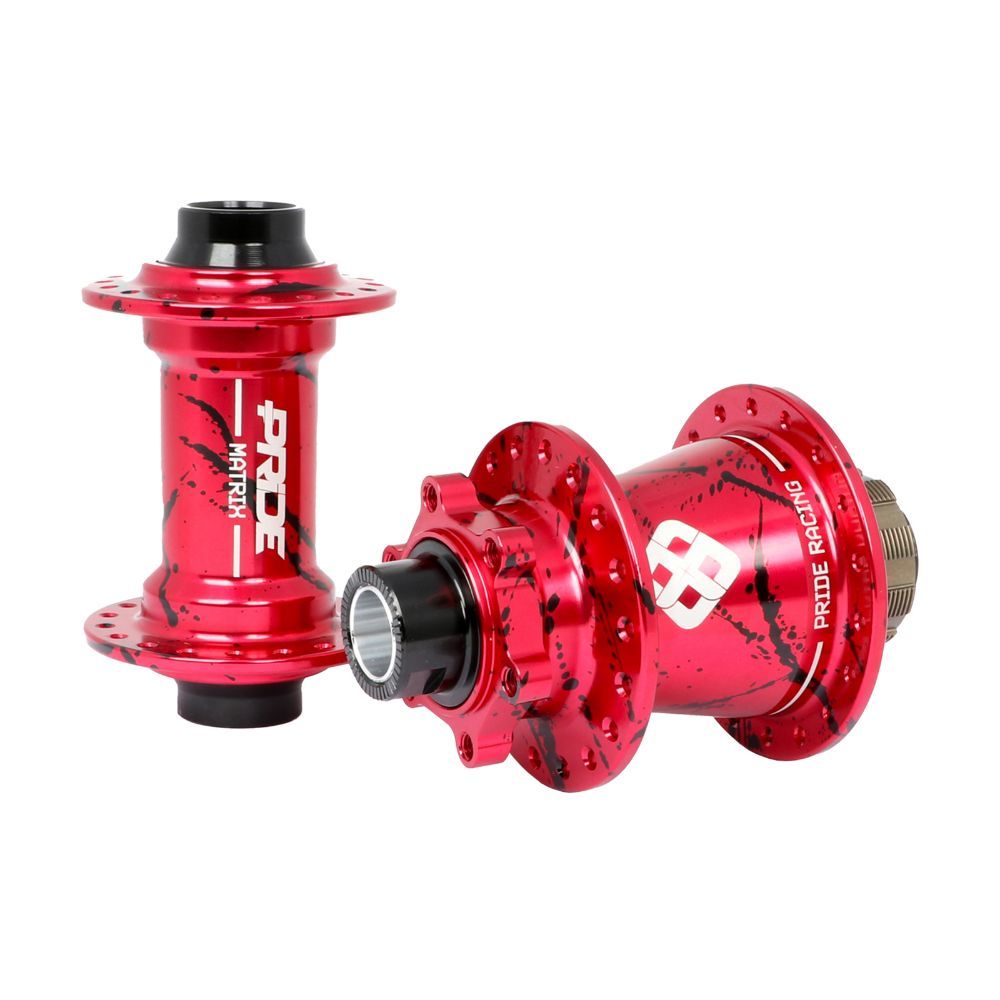

Pride Matrix Hubs Splash Red/Black - 20/15mm - 36H

PRIDE MATRIX HUBS

The Pride Matrix hubs represent the high-end of Pride Racing, designed for top performance and maximum track responsiveness. Developed for near-instant engagement without compromising weight, the Matrix hubs feature an innovative engagement system ensuring immediate power transfer, ideal for explosive starts or technical accelerations. The system relies on two rows of 6 pawls (12 total) operating alternately, reaching 216 engagement points with a 1.67° angle for almost instant power on every pedal stroke. The rear hub is optimized for 120mm rotors to avoid interference with spokes and brake calipers. Matrix hubs are a reference for riders seeking precision, responsiveness, and reliability without compromise.

NOTE: Lock ring and spacers included

SPECIFICATIONS

• Material: Aluminium 6061-T6
• Front Axle: 100x20mm
• Rear Axle: 110x15mm
• Number of holes: 36
• Driver standard: Shimano
• Engagement type: 216 points / 12 pawls
• Disc mount: ISO6
• Front hub bearing: 6804 (20x32x7mm)
• Rear hub bearing: 18307 (18x30x7mm)
• Weight: 182g (Front) / 349g (Rear)
