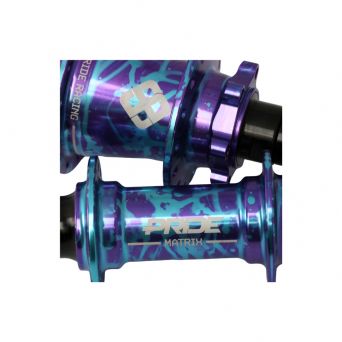

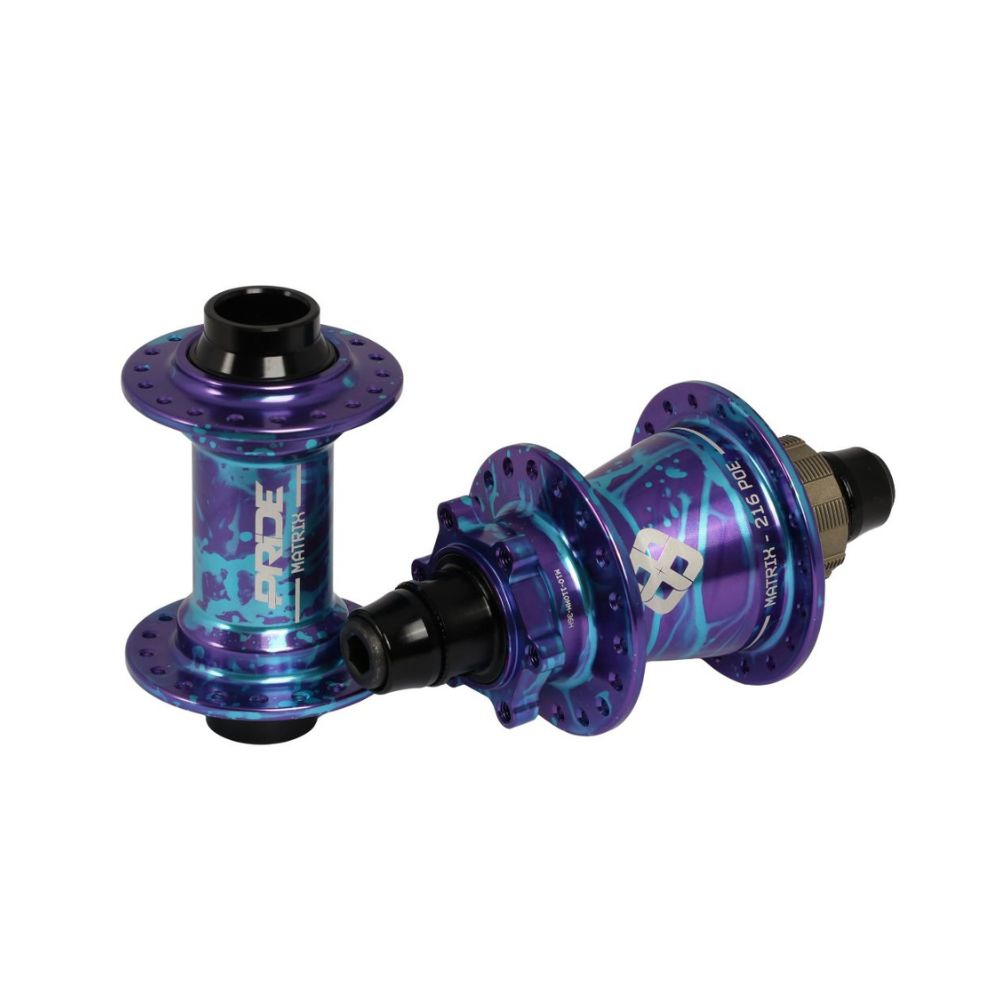

Pride Matrix Hubs Splash Blue/Purple - 20/10mm - 36H

PRIDE MATRIX HUBS

The Pride Matrix hubs represent the high-end of the Pride Racing brand, designed to deliver top performance and maximum responsiveness on the track. Developed with the main goal of offering near-instant engagement without compromising weight. The Matrix hubs integrate an innovative engagement system ensuring almost immediate power transfer, ideal for explosive starts or technical accelerations. The core of this system relies on two rows of 6 pawls, totaling 12 pawls, operating alternately. This mechanism achieves 216 engagement points, with an ultra-low angle of 1.67°, for near-instant power with every pedal stroke. To solve one of the most common BMX issues, interference between the brake caliper and the spokes, the rear hub has also been optimized for 120mm rotors with better clearance between the spokes and the caliper. Matrix hubs are a benchmark for riders seeking precision, responsiveness, and reliability without compromise.

NOTE: A lock ring and spacers are included with the hub

SPECIFICATIONS

• Material: Aluminium 6061-T6
• Front Axle: 100x20mm
• Rear Axle: 110x10mm
• Number of holes: 36
• Driver standard: Shimano
• Engagement type: 216 points / 12 pawls
• Disc mount: ISO6
• Front hub bearing: 6804 (20x32x7mm)
• Rear hub bearing: 18307 (18x30x7mm)
• Weight: 182g (Front) / 349g (Rear)
