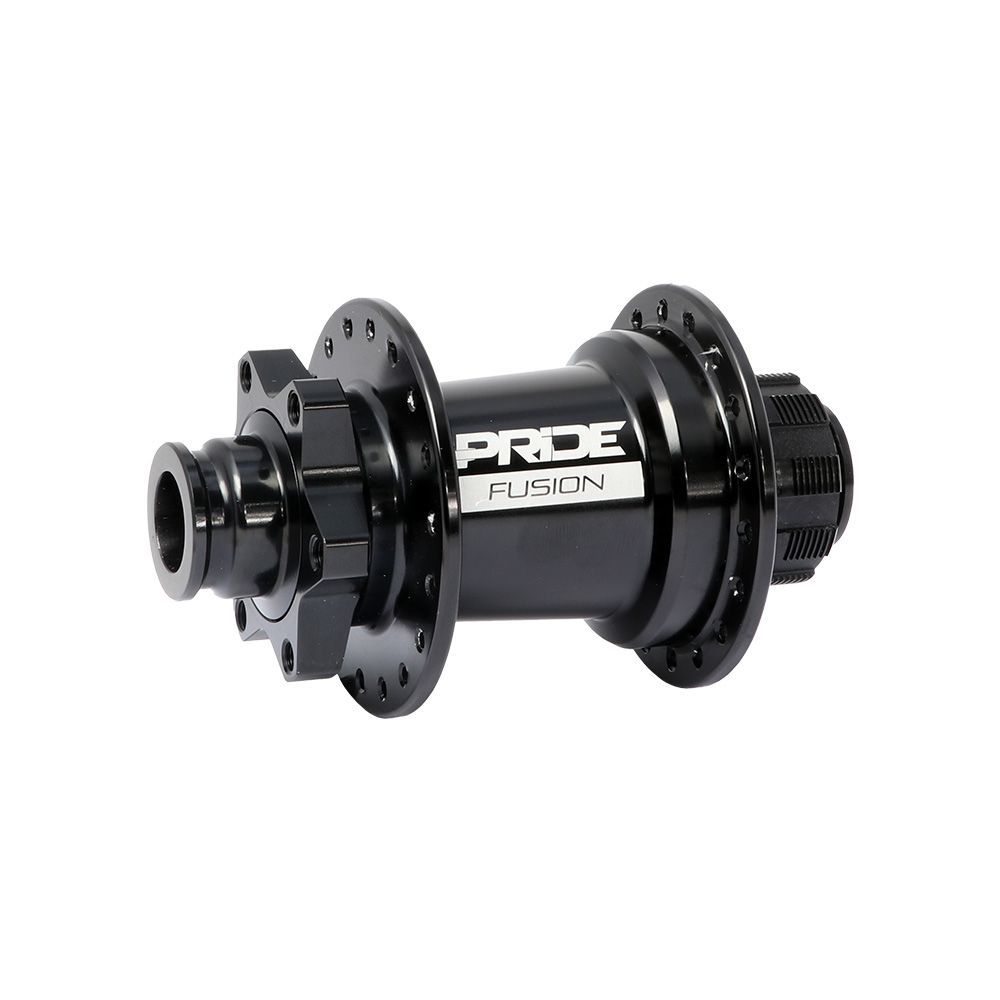

Pride Fusion Rear Hub 15mm - 36H - Black

DISCOVER THE FUSION RANGE

PRIDE FUSION REAR HUBS

Pride Racing proudly presents the FUSION hub, the most advanced, refined, and efficient rear hub to date. FUSION is the result of years of rider feedback, real-world testing, and precision engineering. Developed to meet the growing demands of modern BMX racing, it combines extremely fast engagement, ultra-low drag, long-term durability, and exceptionally low weight. Why FUSION? With evolving frame and drivetrain standards, and riders demanding faster engagement without sacrificing freewheel smoothness, FUSION development focused on three performance goals: maximize engagement precision, reduce drivetrain drag, and maintain low weight without sacrificing durability.

At the core of the FUSION hub is a 6-pawl drive system intelligently designed. Each of the six pawls is offset and works in groups of 3 engaging simultaneously, distributing load evenly. Pawls engage every 3° on the 60-tooth ring for 180 engagement points. This allows rapid engagement while reducing stress on individual components and improving control on exit and in corners.

One of the main FUSION hub design goals was drag reduction, particularly at high cadence and low load typical in BMX racing. It features premium low-friction bearings, optimized pawl spring tension and interface, ensuring precise engagement without excessive rolling resistance. Despite durability and precision, the FUSION hub weighs only 290g ±5%.

The result is a hub that spins freely, maintaining speed, especially during warm-up laps, manuals, or high-speed sections where freewheel smoothness matters. FUSION is among the lightest BMX race hubs available without exotic materials or compromising reliability.

To solve common BMX issues like interference between caliper and spokes, the rear FUSION hub is precisely optimized for 120mm rotors with better clearance between spokes and caliper, cleaner disc interface, and reduced disc flex and friction during braking.

NOTES: A lock ring and spacers are included with the hub.

SPECIFICATIONS

• Material: 6061-T6 Aluminum
• Spacing: 110x15mm
• Number of holes: 36
• Driver standard: Shimano
• Engagement type: 180 points / 6 pawls
• Disc mount: ISO6
• Hub bearings: 6804 (25x37x7mm)
• Weight: 290g
