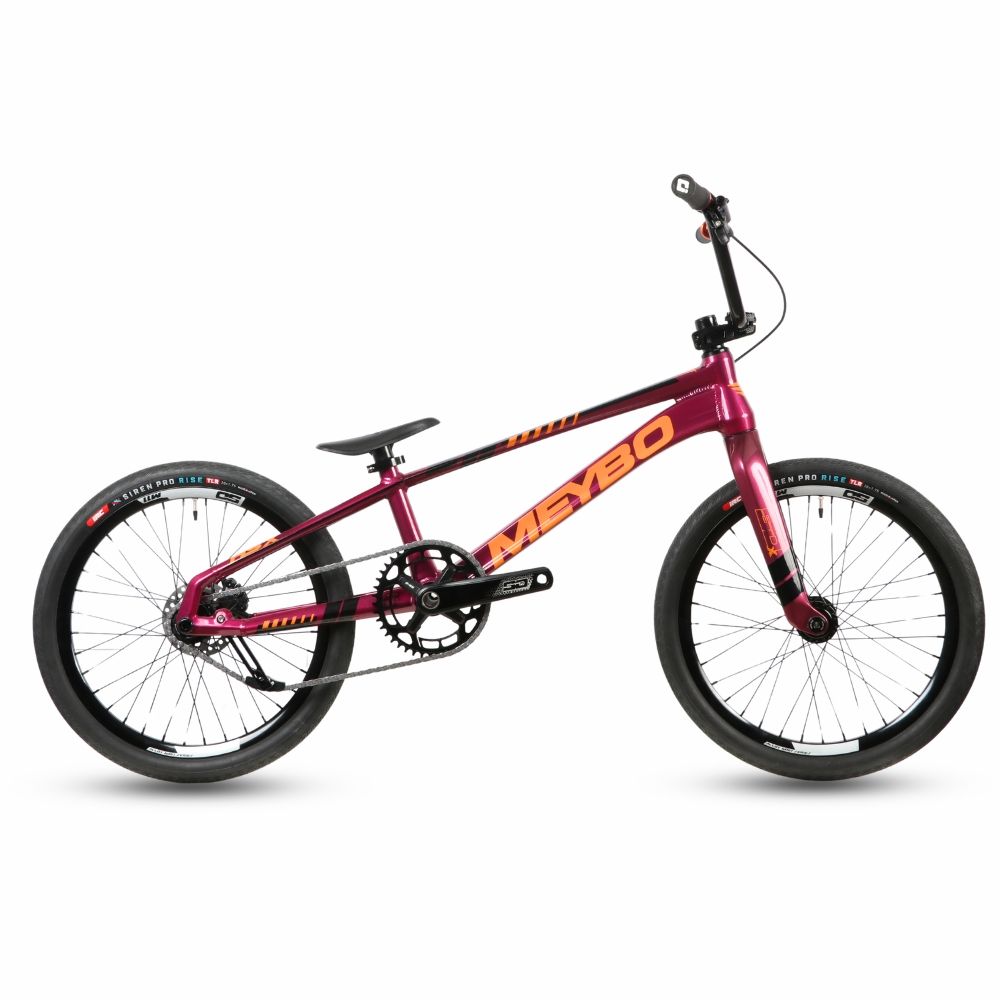

Meybo HSX Bmx - Berry/Orange- Pro 21"

BMX MEYBO HSX - BERRY/ORANGE

The Meybo HSX BMX is based on the Meybo HSX frame made from 6061-T6 aluminum with hydroformed tubes of variable thickness, featuring increased stiffness. Its geometry ensures great stability and responsiveness at high speeds while remaining precise in technical sections. It is also equipped with an SD Carbon fork, an SD handlebar as well as other high-quality components.

The Meybo Custom BMX is a high-performance build, perfectly suited to all rider body types.

Note: it is possible to make component modifications; for this, please contact us at +33 4.78.44.55.76 or by email at: [email protected]

SPECIFICATIONS

• Frame: Meybo HSX AL - Pro 21"
• Fork: SD Carbon V2 Tapered 20" - 20mm
• Handlebar: SD Crmo Lite butted 7" - Ø22.2mm
• Grips: ODI Ruffian V2.1 x Meybo - 135mm
• Stem: SD CNC Topload - 50mm - Ø22.2mm
• Headset: SD Tapered integrated 1-1/8" - 1.5"
• Brake kit: Shimano SLX/GRX - Flatmount
• Brake disc: ISO6 - Ø120mm
• Rims: SD M11 Pro 20"
• Front hub: Pride Fusion - 20mm - 36H
• Rear hub: Pride Fusion - 15mm - 36H - 6 pawls - 180 engagement points
• Tires : Schwalbe SX-R - 20x1.60"
• Crankset: SD B-85 - 170mm
• Bottom bracket: BB386 - 24mm
• Chainring: Pride Newton - 42T
• Sprocket: Pride Matrix Crmo - 16T
• Chain: KMC Z1EHX - 3/32"
• Saddle: SD Revolt Combo Saddle - Ø27.2mm
• Seat clamp: Ø31.8mm

• Weight: 8.10kg

GEOMETRY - FRAME

• Top Tube: 21"
• Rider Area: 535mm
• Down Tube: 534mm
• Rear chainstay length: 369mm
• Head angle: 74°
• Seat tube angle: 71°
