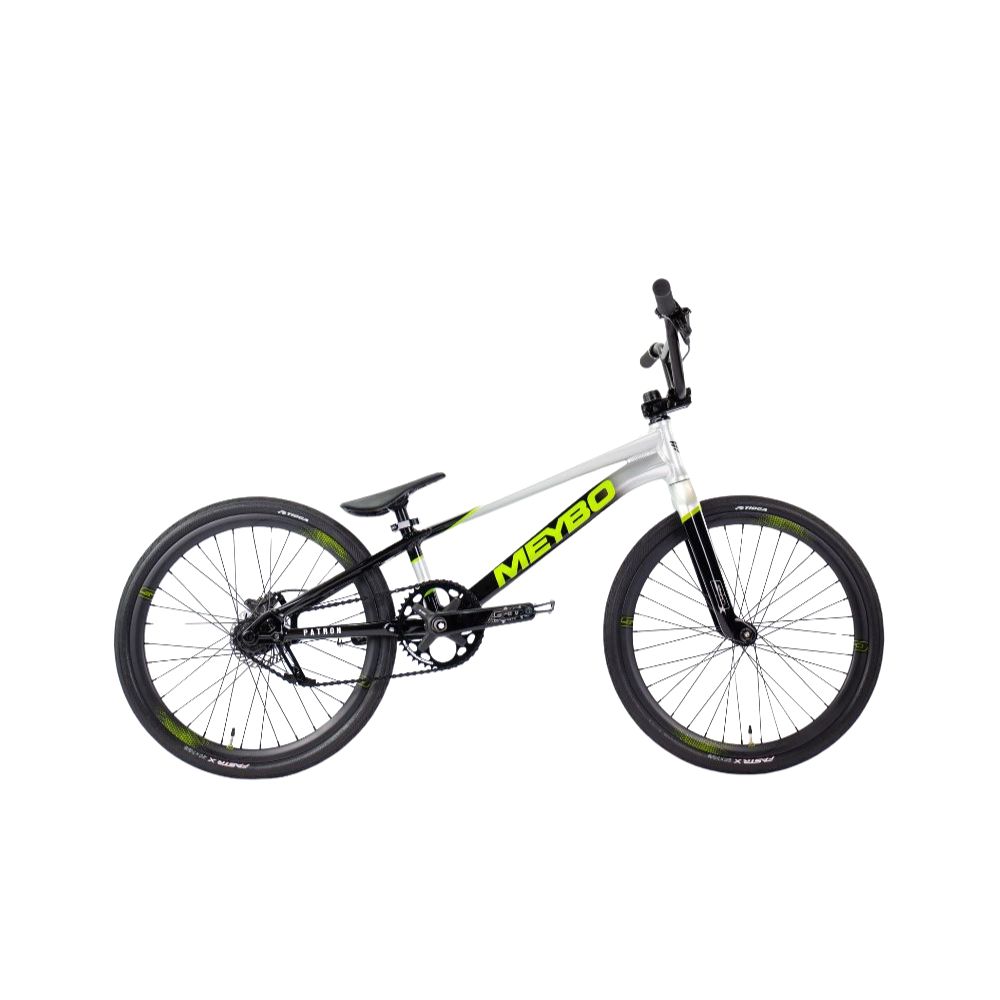

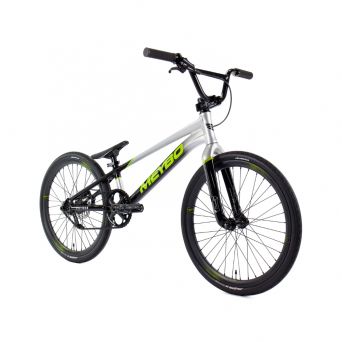

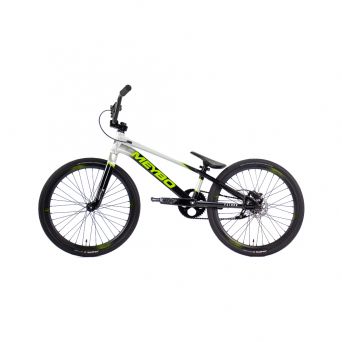

Meybo Patron 2026 Bmx - Black/Grey/Lime - Expert XL

MEYBO PATRON 2026

The Meybo Patron BMX is an exceptional race bike designed to deliver top-level performance on BMX Race tracks.

Its Meybo HSX aluminum frame offers the perfect balance of lightness, stiffness, and responsiveness, ensuring explosive starts and optimal agility through corners.

Equipped with high-end components, it delivers outstanding reliability and consistent performance in competition. The SD Carbon V2 fork provides remarkably precise handling while reducing overall bike weight. The carbon rims, both lightweight and extremely stiff, help achieve maximum speed with minimal rolling resistance, while the Shimano MT501 braking system ensures power and control during deceleration phases. Fitted with Tioga Fastr-X tires and a selection of components specifically designed for elite BMX racing, the Meybo Patron is an ideal choice for riders seeking speed, control, and top-tier performance.

The Patron range is engineered to adapt to each rider’s body type. Depending on the bike size, every component is carefully selected to offer the best riding experience possible. As you can imagine, the Patron is fully competition-ready—an elite weapon built to dominate the most demanding tracks on the world circuit and to beat the clock.

SPECIFICATIONS

• Frame : Meybo HSX Alloy Expert XL
• Fork: SD Carbon V2 1-1/8" 10mm
• Headset : FSA Sealed Bearings Fully Integrated 1-1/8”
• Handlebars : SD Aluminium Expert XL 6"
• Stem : SD - 100% CNC Machined 1-1/8” - 50mm
• Grips : SD - Lock-On 130mm
• Brake Kit : Shimano MT501 - Hydraulic Brake
• Front Hub : SD Ace Expert - 36H - 8mm Bolts
• Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
• Rims : SD M83 20x 1"-3/8 Carbon - 25mm
• Tires : Tioga Fastr-X - 20x1-3/8"
• Crankset : SD Expert 4-lite - 4 Bolt - 160mm
• Pedals : Wellgo B-219 - Sealed Bearings - CNC Machined Platform
• Bottom Bracket : SD Hollow EB24 - 24mm - Euro/BSA
• Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 40T - Black
• Cog : 16T
• Chain : KMC X9 - 3/32"
• Chain Tensioners : Meybo HSX
• Seat : Box Two Mini - 25.4mm
• Seat Clamp : SD QR - 28.6mm

GEOMETRY - FRAME

•
• Top Tube : 20.67"
• Down Tube : 21.69"
• Chainstay : 13.78"
• Head Tube Angle : 73,5°
• Seat Post Angle : 71°
• Head Tube Size : 1"-1/8
• Seat Post Size : 25,4mm
• Dropouts : 15mm
• Bottom Bracket : EURO/BSA
• DISC ONLY
