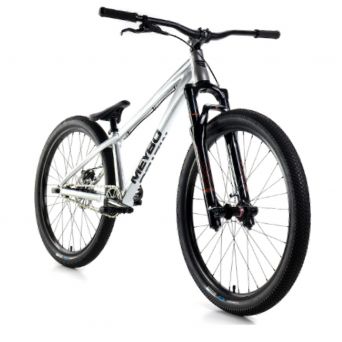

Meybo Steez Dirtjump Bike

MEYBO STEEZ

Meybo Bikes is a Dutch brand founded in the early 2000s, originally focused on BMX Race. Today, as a leading name in the racing world, Meybo introduces a Dirt Jump / Pumptrack model to its lineup. Known for high-quality products, this Dirt Jump bike combines premium components with an attractive price. It features an ultra-lightweight aluminum frame, RST Space suspension fork, a strong 3-piece crankset, and hydraulic disc brakes.

This model is perfect for Pumptracks and jump fields, offering both performance and durability for riders of all levels.

SPECIFICATIONS

• Frame: Meybo Steez 26" Aluminum

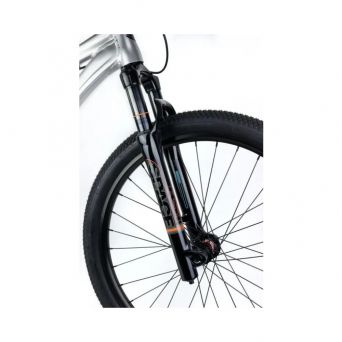

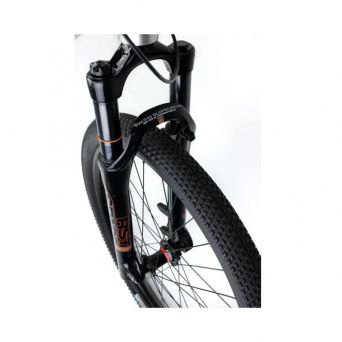

• Fork: RST Space - 26" - 100mm travel - Tapered (1"-1/8 | 1,5")
• Headset: Tapered 1"-1/8 | 1,5"
• Handlebars: MTB Aluminum handlebars 31.8mm diameter
• Stem: Oversized clamp 31.8mm - 45mm long
• Handles: 130mm Lock On
• Brake lever: Clarks Hydraulic CH-19

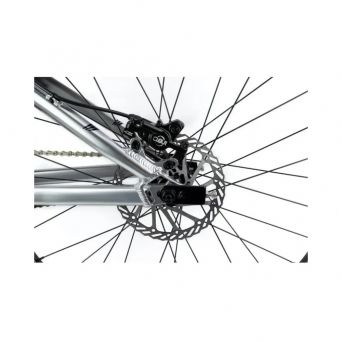

• Brake caliper: Clarks Hydraulic CH-19
• Front hub: Novatec 36H - 20mm thru axle
• Rear hub: Novatec 36H - 10mm male axle
• Spokes: Black
• Spokes heads : Brass 14G Black
• Front rim: 26" Double wall - Aluminum
• Rear rim: 26" Double wall - Aluminum
• Tires: Vee Tire Co. Speedster 26" x 2.25" tires
• Seat: Pivotal Black 27.2mm
• Seat Clamp: Black 31.8mm

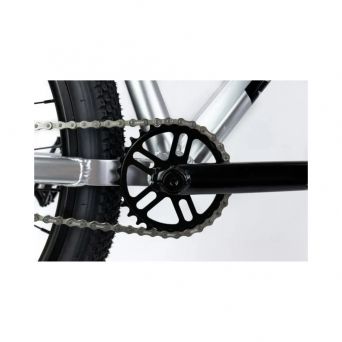

• Crankset: Cr-Mo 3 piece 175mm - 8 splines - 19mm diameter axle
• Bottom bracket: 19mm sealed bearings - EURO
• Pedals: Black Aluminum
• Sprocket: Black - 3/32 chain type - 30T
• COG: 14T - 3/32 Chain type
• Chain: KMC Z1 Narrow 3/32
• Chain tensioners: Integrated in the frame

Weight : 13.67kg

FRAME GEOMETRIES

• Top Tube : 22,86"
• Down Tube : 26"
• Chainstay : 15,43"
• Angle Head Tube : 69°
• Seat Tube Angle : 68,5°
• Headtube Size : 1"-1/8 | 1,5" (Tapered)
• Seat Post Diameter : 27,2mm
• Dropouts : 10mm
• Buttom Bracket type : EURO 19mm
• Disc Brakes compatible only
