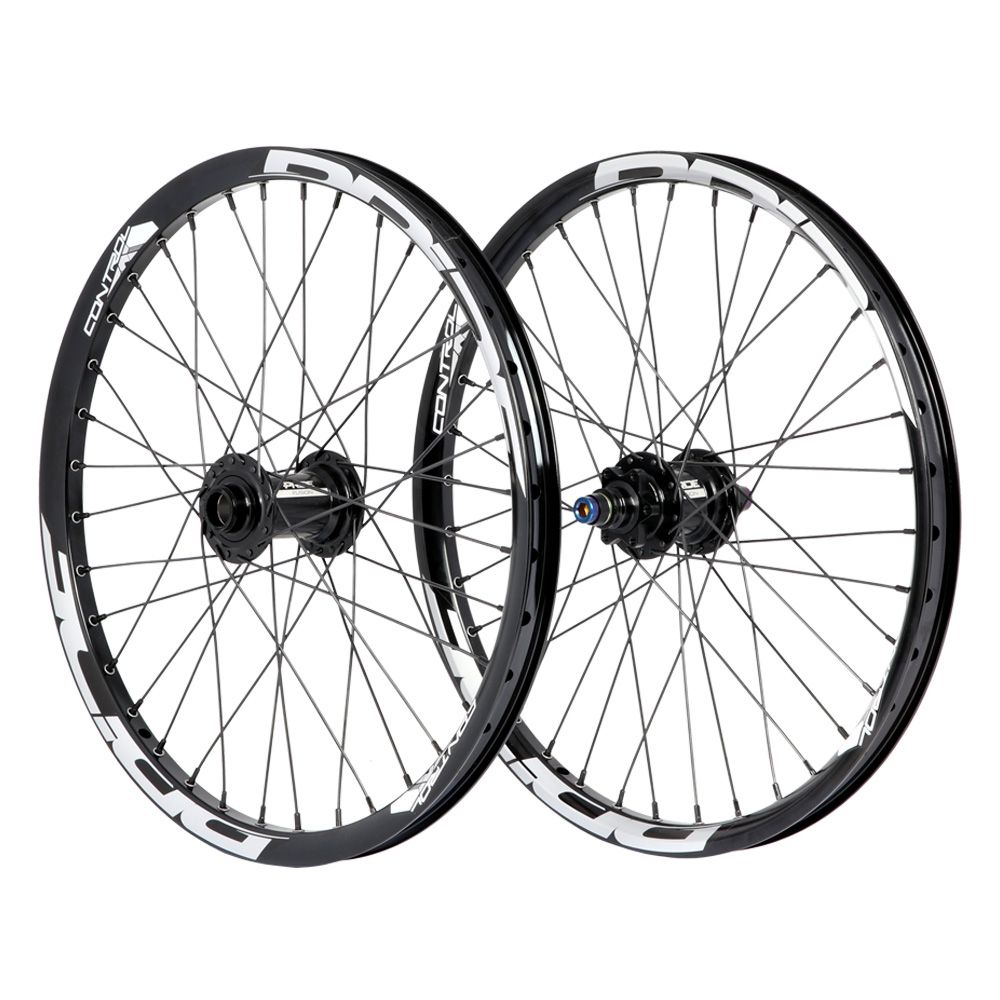

Wheels 20" (406) Pride Fusion 20/10mm - Control

PRIDE FUSION - CONTROL WHEELS

The Pride wheelset combining Control rims with Fusion hubs represents the perfect balance between performance and reliability for BMX racing. The Control rims, made from 6061 aluminum with T6 heat treatment, provide optimal stiffness while maintaining a low weight. Their reinforced design, including specific eyelets, allows them to handle high spoke tension, ensuring excellent durability even under intensive use.

At the heart of this wheelset, the Fusion hubs deliver exceptional responsiveness thanks to their 180 points of engagement. Featuring a 6-pawl system and high-end bearings, they ensure outstanding smoothness, maximum precision, and instant power transfer. With minimal drag and a lightweight design, this wheelset is ideal for riders seeking speed, control, and performance on the track.

NOTES

• The rear wheel is supplied with a lock ring and spacers to adjust the chain line.
• Rim tapes are not included

SPECIFICATIONS - RIMS

• Model: Pride Control Pro
• Size / ETRTO: 20" / 23-406 (FR) 24-406 (RR)
• Material: Aluminum 6069-T6
• Wall: Double
• Spoke count: 36
• Height: 19mm
• Width: 27mm
• V-Brake compatibility: No
• Valve type: Presta
• Compatible tire width: 29-65mm (20x1.40" - 20x1.85")

SPECIFICATIONS - HUBS

• Material: Aluminum 6061-T6
• Front spacing: 20x100mm (Thru axle not included)
• Rear spacing: 10x110mm
• Hole count: 36
• Driver standard: Shimano
• Engagement type: 180 points / 6 pawls
• Disc mount: ISO6
• Front bearing: 6805
• Rear bearing: MR18307

WEIGHT

• Wheelset: 1682g
• Front wheel: 744g
• Rear wheel: 938g
