Staystrong Chevron Race Bar Black

STAYSTRONG CHEVRON RACE HANDLEBAR

The Chevron Straight Race handlebar is made from Chromoly with a 22.2 mm diameter. Designed to provide greater comfort, its 2° upsweep and 6° backsweep allow for a more comfortable riding position. It features a 29" width, adjustable thanks to visible cut marks on each side of the handlebar. This handlebar uses 11 different wall thicknesses depending on the area, optimizing weight as much as possible.

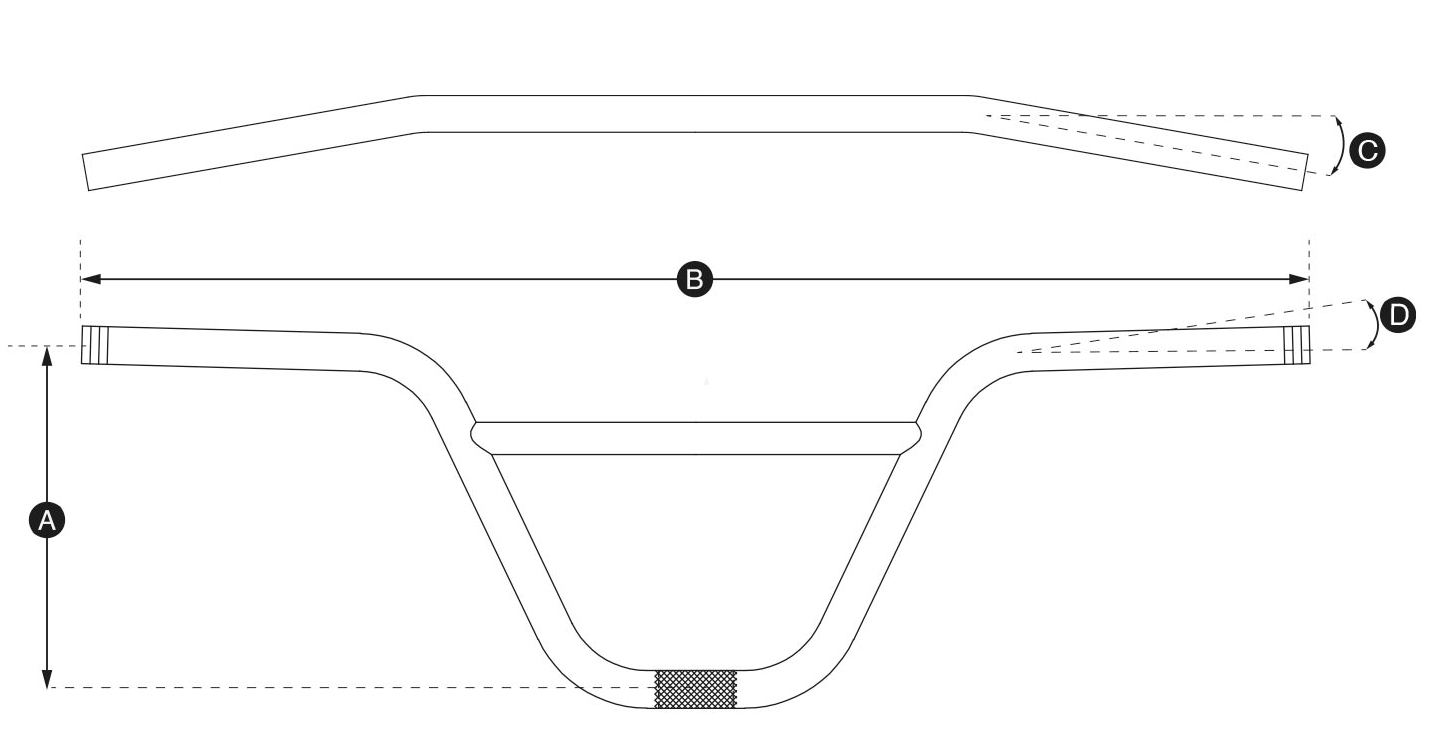

SPECIFICATIONS / GEOMETRY

• HEIGHT (A)	WIDTH (B)	DIAMETER	MATERIAL	BACKSWEEP (C)	UPSWEEP (D)	WEIGHT
  7"	745 mm	Ø22.2 mm	Heat-treated Chromoly 4130	6°	2°	790 g
  7.5"	750 mm				2°	790 g
  8"	735 mm				2°	805 g
  8.25"	735 mm				2°	810 g
  8.5"	750 mm				2°	825 g
