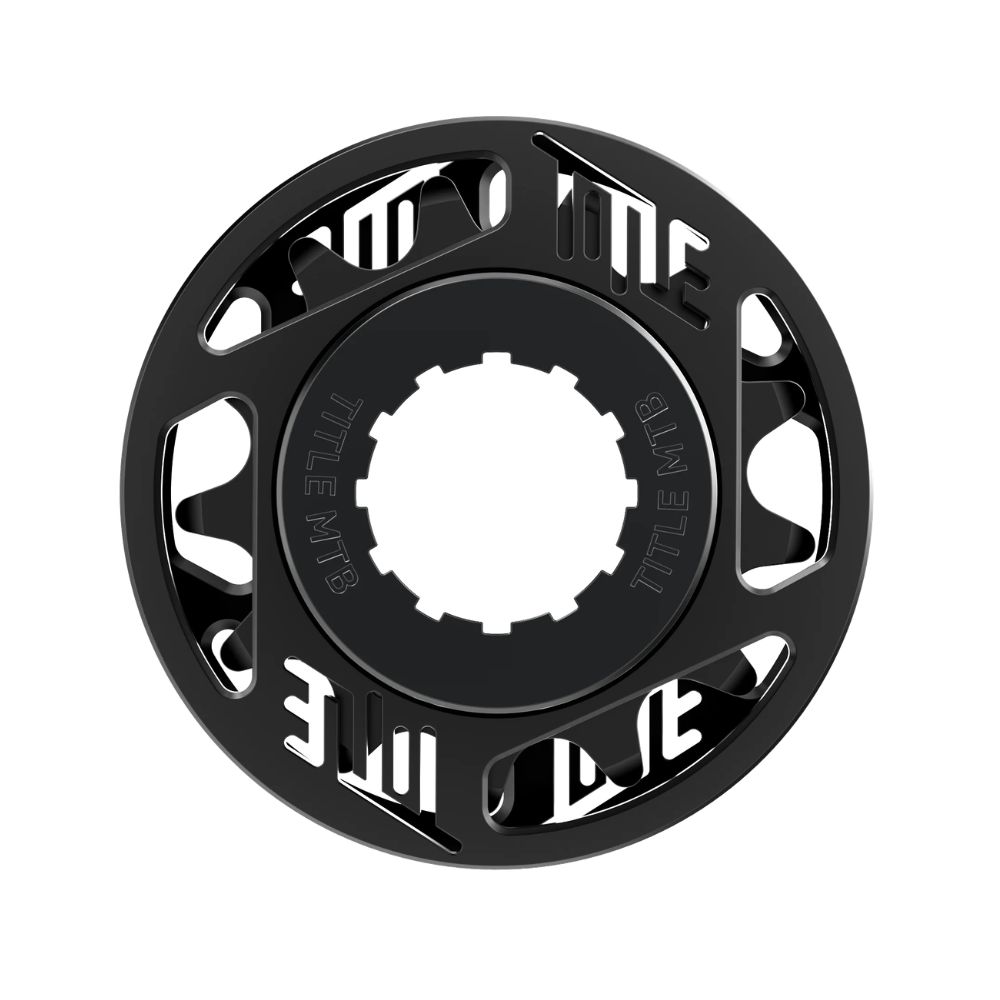

Title Single Speed Kit - Black

TITLE SINGLE SPEED KIT

Convert your rear wheel into a single speed setup with this complete kit designed for dirt jumpers, downhill bikes, or any bike equipped with a Shimano HG freehub body (not compatible with XD or MicroSpline).

Thanks to its robust metal components, it offers excellent reliability and high durability, even under heavy use. The parts are designed to withstand the stresses of riding while ensuring optimal longevity. The chainline adjustment is made easy with the included CNC spacers, allowing precise positioning of the cog for perfect alignment and smooth drivetrain performance. Its quick installation takes just a few minutes using a standard cassette tool, without complex modifications to the bike. A simple and accessible solution to switch to single speed with ease.

NOTE: The kit is only compatible with Shimano HG cassette bodies

FEATURES

• Material: Aluminum
• Freehub standard: Shimano HG
• Tooth count: 13T
• Weight: 80g

KIT CONTENTS

• 1x 13T Cog
• 2x Guide plates
• 3x 5mm spacers
• 1x 3.5mm spacer
• 1x 2mm spacer
• 1x Lock ring
• 1x Locking spacer

INSTALLATION GUIDE

• - Remove your rear wheel. Thoroughly clean the freehub body to ensure proper operation of the single speed kit.
• - Add the desired number of spacers to achieve the preferred chainline.
• - Install the single speed back plate.
• - Install the toothed cog.
• - Install the single speed front plate.
• - Add additional spacers as needed for adjustment.
• - Hand thread the lock nut (make sure the locking spacer is installed first).
• - Use your cassette tool and torque the lock nut to 40 Nm.
• - Reinstall the rear wheel on your bike, install the chain, and check that the chainline is optimal.
