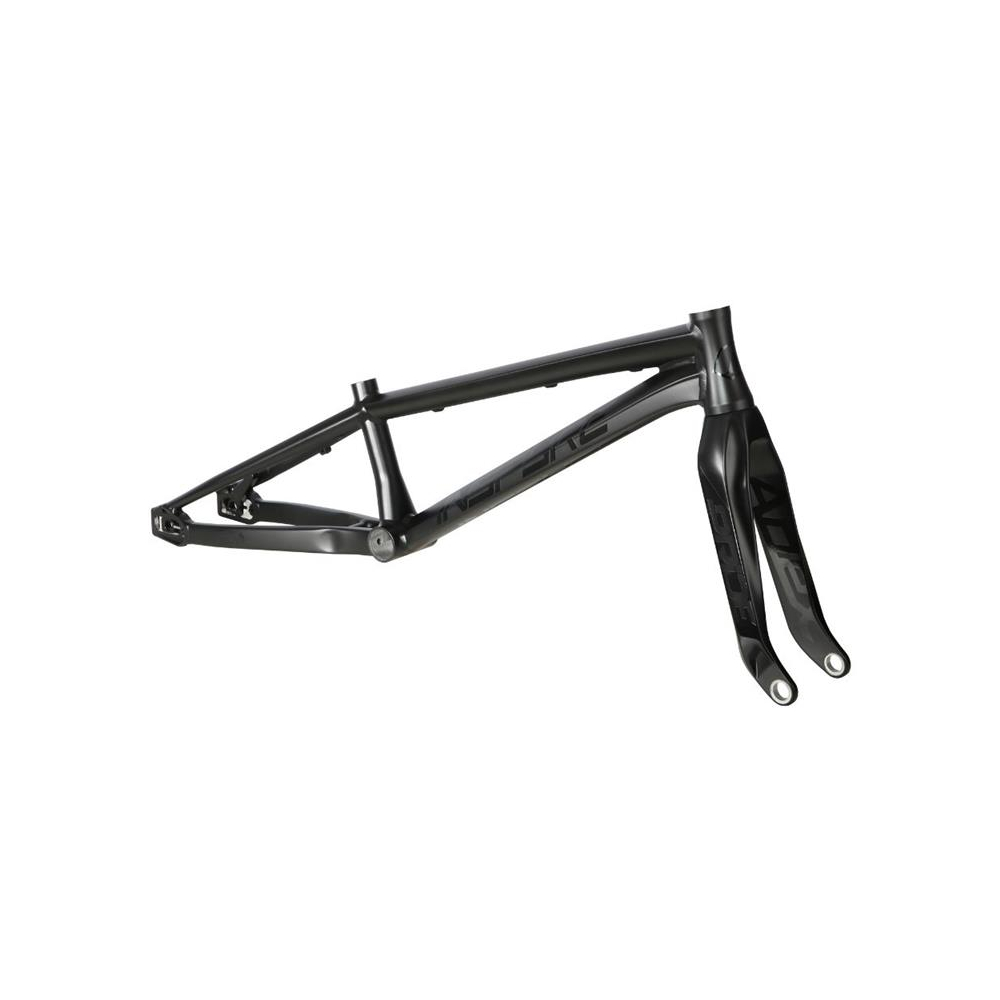

Inspyre Concorde V3 Frame/Fork Kit - Midnight Black

INSPYRE CONCORDE V3 FRAME/FORK KIT

Discover the new Inspyre Concorde V3, which establishes itself as one of the most advanced aluminum frames on the BMX Race market.

Every tube of the Concorde V3 is hydroformed to achieve an optimal balance between lightness, strength, and aerodynamics. The attention to detail is especially evident in the innovative design of the junction between the down tube, bottom bracket shell, and chainstays. This intersection is the result of precise engineering by the Inspyre team.

The generous cross-sections and smooth transitions ensure optimal load distribution, creating a structure with exceptional lateral stiffness. This increased stiffness significantly improves pedaling efficiency by ensuring optimal power transfer to the drivetrain. By minimizing frame flex, the Concorde V3 maximizes energy return.

The Concorde V3 stands out with its flat welds, delivering an outstanding level of finish. In terms of paintwork, no detail has been overlooked, with decals applied beneath the clear coat.

In accordance with IS42/IS42 and IS42/IS52 standards, we recommend the use of PRIDE RACING headsets, which perfectly match the shape of the CNC-machined, hourglass-shaped head tube.

The SWELL V2 dropouts offer a true adjustment range of 25 mm. The internal 7075-T6 aluminum plates remain in place even when the rear wheel is removed. The disc mount uses the Post Mount standard for a 120 mm rotor (140 mm compatible with an adapter). Compatible with a 15 mm thru-axle (10 mm adapters included).

The APEX Carbon fork uses different types of carbon fibers to manage lateral loads, torsion, and impacts. It features a 7075-T6 aluminum steerer tube and CNC-machined dropouts for a 20 mm axle (Pro and Cruiser sizes) and a 10 mm axle (Junior to Expert XL).

SPECIFICATIONS

• Frame 100% aluminum AL66
• Apex carbon Fork Tapered
• Hydroformed tubes with multiple thicknesses
• Compatible only with "Post Mount" hydraulic brakes
• Bottom bracket BSA 68 or BB86 depending on sizes - see the table below
• Compatible with Inspyre's ADS chain tensioners
• Included disc brake mount adapters 15mm to 10mm
• 15mm thru-axle is sold separately (reference: CAIN5026)

GEOMETRY

The determination of Head Tube Angles and BB height is influenced by the choice of fork and tires. We've meticulously calibrated our angles to ensure accuracy when paired with a Pride Carbon Fork, and when using TIOGA Fastr or PowerBlock tires. This configuration guarantees precise angles and measurements. However, employing alternative forks and tires may introduce a deviation, either positive or negative, in both heights and angles.
