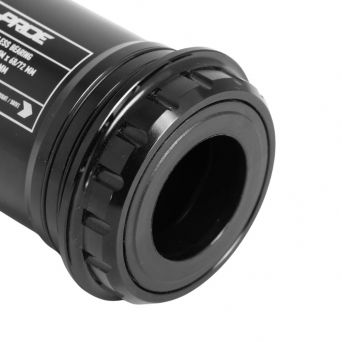

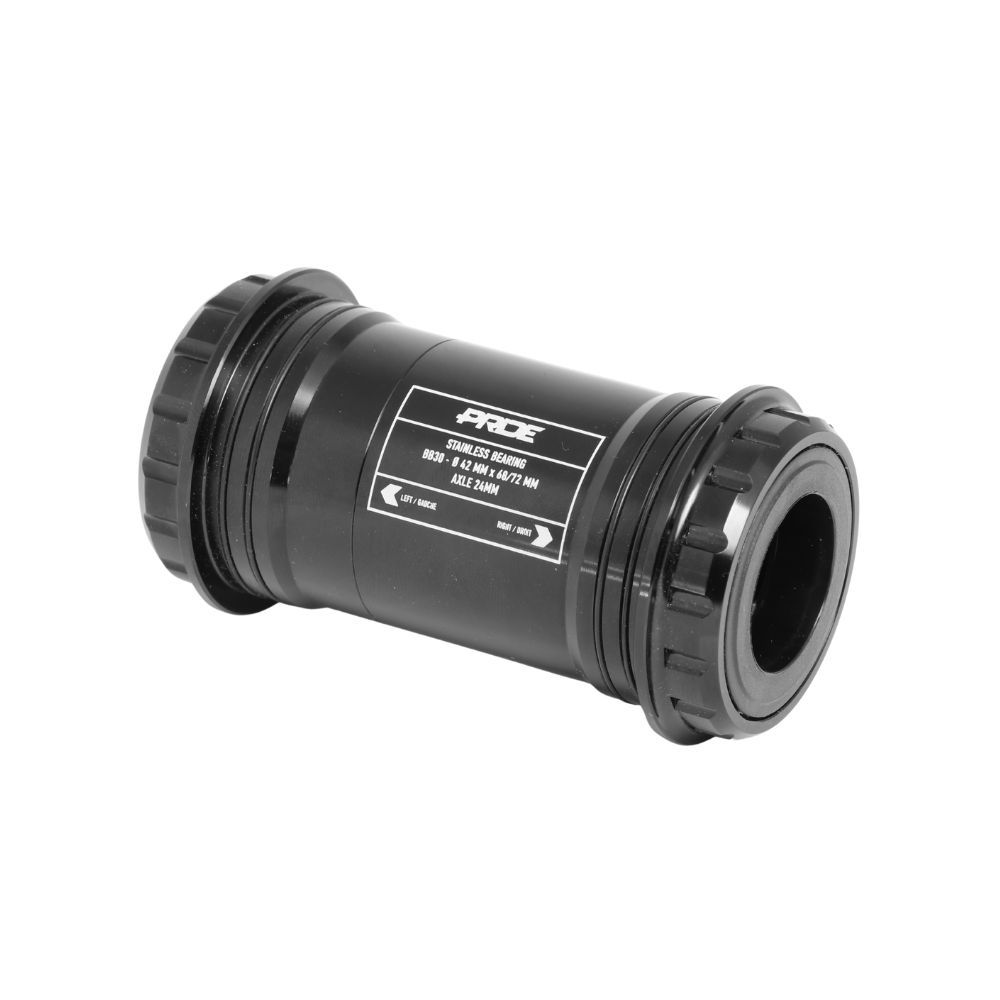

Pride Racing BB30 Interlock Stainless Bottom Bracket - 24mm

PRIDE RACING BB30 INTERLOCK STAINLESS BOTTOM BRACKET - 24MM

Thanks to its "Interlock" design, the Pride Racing bottom bracket is ideal if you don't have a press to install the cups in your frame. Simply place the two cups on each side of the frame and screw them together using a SHIMANO Hollowtech II type tool. Then just tighten everything, and you're done!

This bottom bracket features two CNC machined 7075 aluminum cups with anodized finish for a perfect look. It is designed to fit a 24mm crankset on a frame accepting a Pressfit BB30 bottom bracket with 42mm inner diameter and 68mm shell width.

It is equipped with stainless steel angular contact bearings, ensuring long service life.

FEATURES

• Bottom Bracket Type: BB30
• Installation: Threaded
• Spindle Diameter: 24mm
• Frame Inner Diameter: 42mm
• Shell Width: 68mm
• Bearings: Stainless Steel 6805-2RS
• Material: 7075 Aluminum
• Weight: 124g
